Coil Color Coating Line

CCL0.8 Metal Roller Roll Coating Machine

  • Coil Thickness: 0.15-0.8mm
  • Coil Width:500-1600mm
  • Production Speed:0-120m/min
  • Coating Type:Continuously Coating

Metal Coating Machine / Roll Coating Machine

Metal coating machine is a processing of coating sheet with organic paint. The coated sheet has good characteristic of printing, forming, corrosion resistance and decoration,  it still keeps the performance of high strength and deformability. The production of roll coating machine sheet with high quality and multi-function develops recently, and the sheet with high corrosion resistance, high deformability, fingerprint resistance and microbial resistance will share part of market.

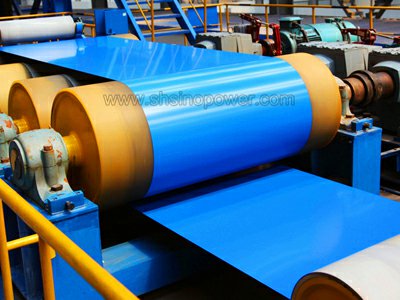

Roller coating machine is capable of producing high-quality color-coated steel sheet with high levels of productivity, at a maximum speed of 120 m/min. The metal coating machine applies coating to the steel sheet is configured with three rolls: pick-up roll, metering roll and applicator roll. This robust device obtains excellent coating weight uniformity and surface appearance, even during high-speed passing. Additionally, roping that occurs when using highly thixotropic coating materials is controlled by the Doctor Bar, enabling a beautiful coating to be achieved. A regeneration-type oven is employed for sintering of the coating, reducing the coating-related running costs and environmental impact.
Metal strip produced from the roll coating machine is coated using multi-layer technology to meet visual requirements on the one hand by applying different colors, and to protect the final product on the other hand against corrosion, chemicals, UV radiation, and mechanical scratches.


Roll Coating Machine Layout

Open-book unit haul car → unwinding pinch machine shearing machine welding machine → tension machine → unit before the storage material in the device on the washing machine → tension machine → hot-air purge device → chemical vapor roller coating machine → tension machine → drying oven in the unit on the machine → primer paint curing ovens, air-cooled unit → water cooling device in the device on the machine → topcoat paint curing ovens, air-cooling device → tension machine → Water Cooled After the material storage unit shearing machine → tension machine → Export → pinch machine winding unit → haul car.


Technical Parameters



Raw Material

Galvanized steel coil, Aluminum zinc coil, Aluminum coil

Coil Thickness


Coil Width


Raw Coil Weight

≤15 tons

Final Coil Weight

≤8 tons

Roll-Coating Process

Twin coats on the front and back

Coating Thickness

Front max 40μm, back max 15μm

Line Speed

0-120m/min, max canbe 300m/min

Thermal Sourse

Water, electric, natural gas or oil

Line capacity

Max 150,000 tons/year

Line Speed

0-120m/min, max canbe 300m/min

Electrical Control System

PLC automatic control

Whole Review


Final Products
metal coating machine,roll coating machine,roller coating machine
