Coil Color Coating Line

CCL2.0 Coil Coating Machine Coating Line

  • Coil Thickness:0.2-2.0mm
  • Coil Width:500-2000mm
  • Production Speed:0-120m/min
  • Coating Type:Continuously Coating

Coil Coating Line / Machine Coating

Coating line is a processing of coil coating sheet with organic paint. The coated sheet has good characteristic of printing, forming, corrosion resistance and decoration,  it still keeps the performance of high strength and deformability. The production of machine coating sheet with high quality and multi-function develops recently, and the sheet with high corrosion resistance, high deformability, fingerprint resistance and microbial resistance will share part of market.
Metal strip produced from coil coating is coated using multi-layer technology to meet visual requirements on the one hand by applying different colors, and to protect the final product on the other hand against corrosion, chemicals, UV radiation, and mechanical scratches.


Machine Coating Line Layout

Open-book unit haul car → unwinding pinch machine shearing machine welding machine → tension machine → unit before the storage material in the device on the washing machine → tension machine → hot-air purge device → chemical vapor roller coating machine → tension machine → drying oven in the unit on the machine → primer paint curing ovens, air-cooled unit → water cooling device in the device on the machine → topcoat paint curing ovens, air-cooling device → tension machine → Water Cooled After the material storage unit shearing machine → tension machine → Export → pinch machine winding unit → haul car.

Technical Parameters



Raw Material

Galvanized steel coil, Aluminum zinc coil, Aluminum coil

Coil Thickness


Coil Width


Raw Coil Weight

≤15 tons

Final Coil Weight

≤8 tons

Roll-Coating Process

Twin coats on the front and back

Coating Thickness

Front max 40μm, back max 15μm

Line Speed

0-120m/min, max canbe 300m/min

Thermal Sourse

Water, electric, natural gas or oil

Line capacity

Max 200,000 tons/year

Line Speed

0-120m/min, max canbe 300m/min

Electrical Control System

PLC automatic control

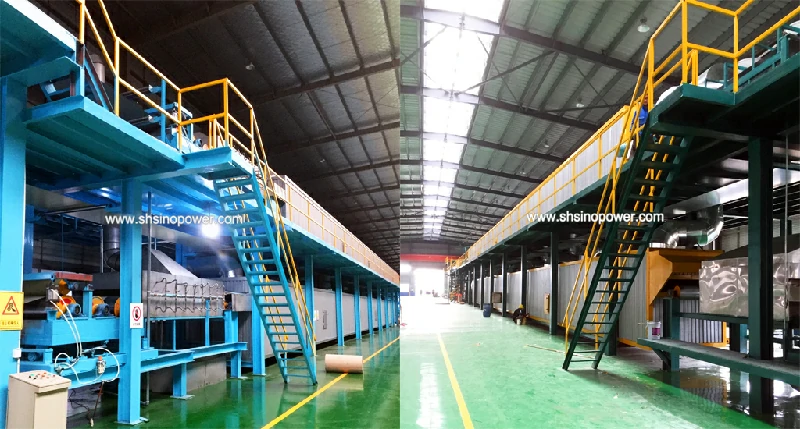

Whole Review

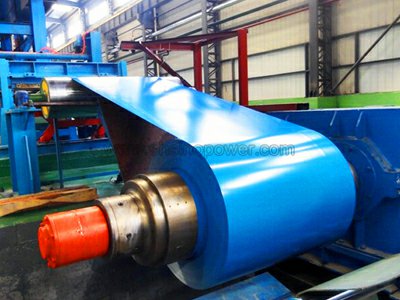

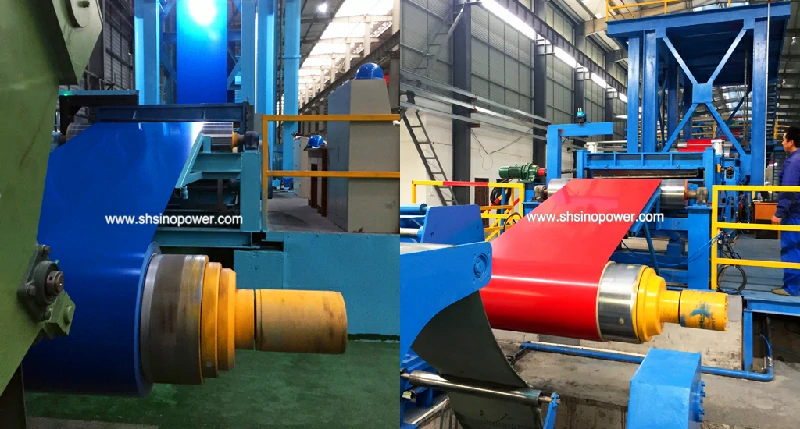

Final Products
coil coating,machine coating,coating line
