Cut To Length Line

CTL4-16 Steel Coil Cutting Machine Decoiler Straightener

  • Coil Thickness:4-16mm
  • Coil Width:500-2200mm
  • Final Sheet Length:400-12000mm
  • Pipe Material: HR CR BLACK STEEL IRON etc
  • INQUIRY

Steel Coil Cutting Machine / Decoiler Straightener

Steel coil cutting machine is applicable to coils of various specifications. Steel coil straightener is used for cutting the required width and length metal sheet palte from roll coil throught the procedure of uncoiler, slattening, sizing, cutting and packaging. Decoiler straightener has advantages such as proper layout, easy operation, highly automated and production efficiency.

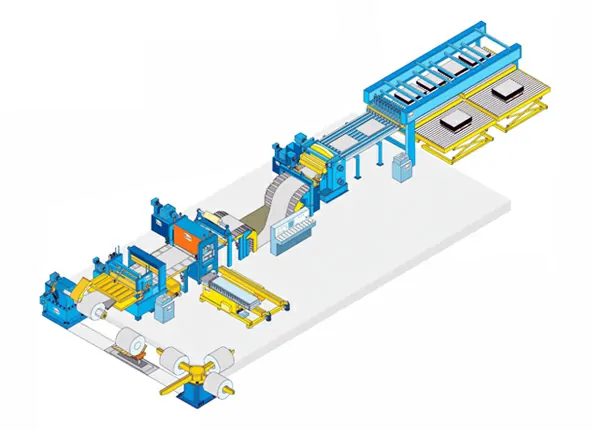

This kind of steel coil cutting machine consists of loading cut, uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, final decoiler straightener, servo length gauge, shear, belt conveyor, reversal discharge, stacker, discharging cart, servo transmission system, hydraulic system, etc.

CTL4-16 steel coil cutting machine is applicable to coils of various specifications with the thickness of 4-16mm and width 500-2200mm. Decoiler straightener can produce HR CR PPGI GI AL CU.

Technical Parameters

Model

CTL4-16

Coil Material

HR / CR / SS / MS / BLACK STEEL / IRON

Coil Thickness

4-16mm

Coil Width

800-2200mm

Coil Weight

≤30T

Coil I.D

508mm,610mm,760mm

Coil O.D

≤2200mm

Final Sheet Length

400-12000mm

Line Speed

0-40m/min

Electrical Control System

PLC automatic control

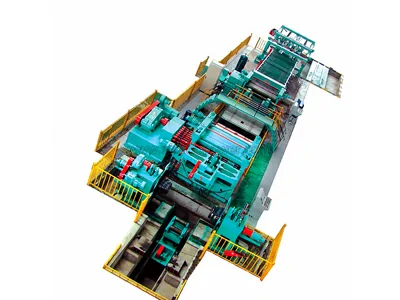

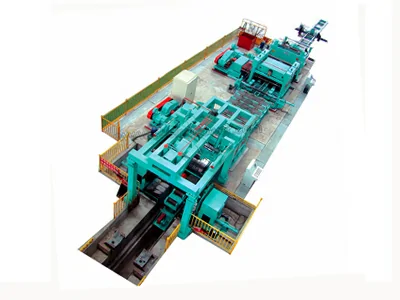

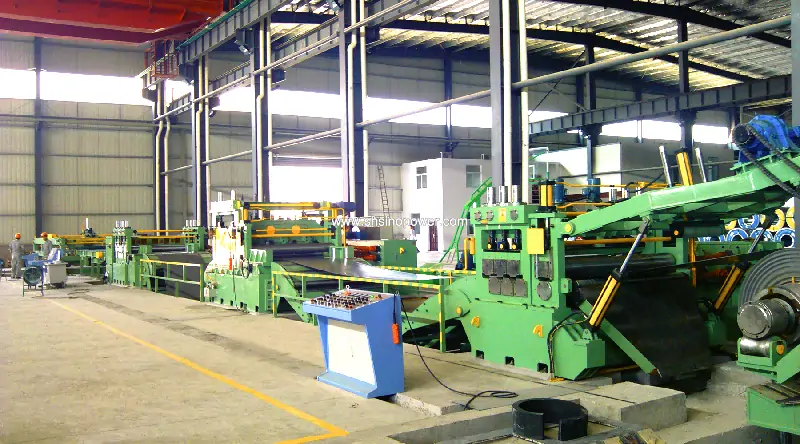

Whole Review

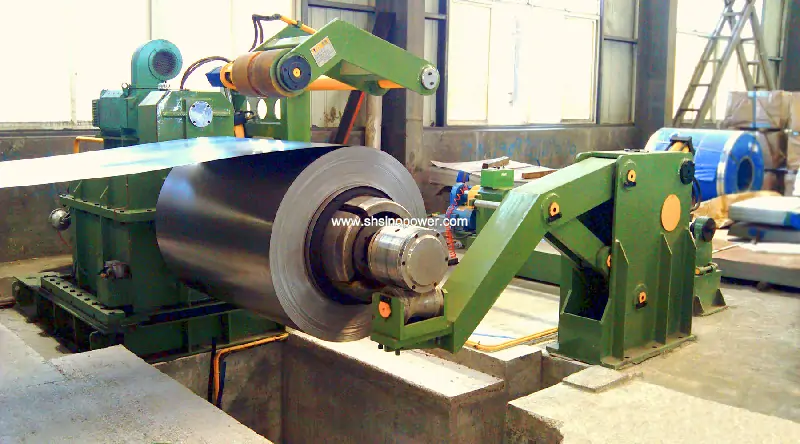

Decoiler

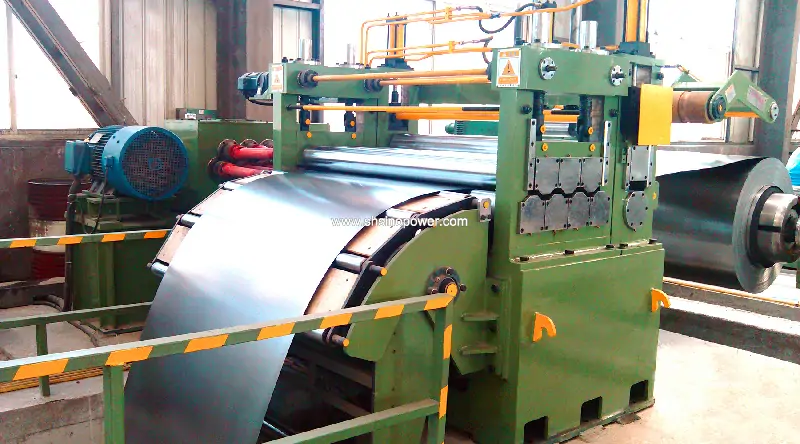

Pre-leveler

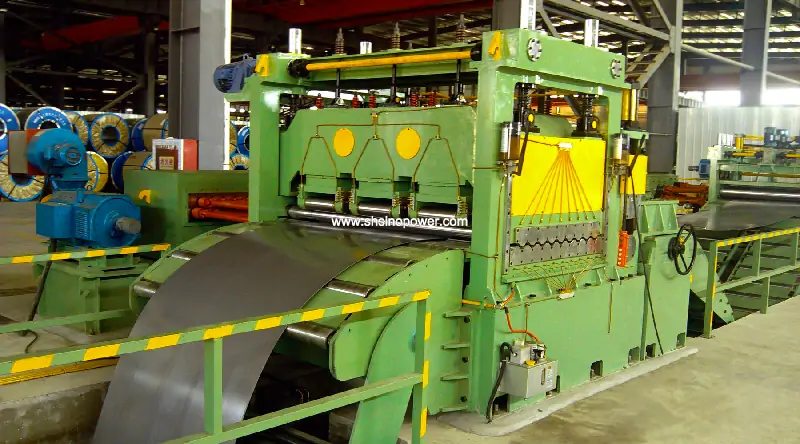

4-Hi leveler

Recoiler

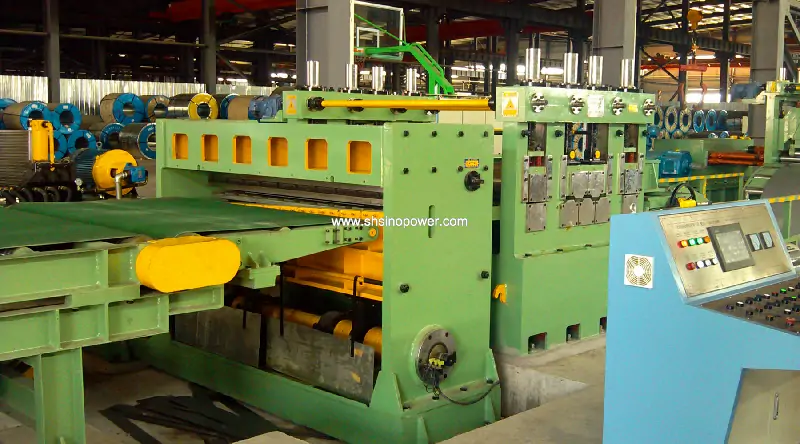

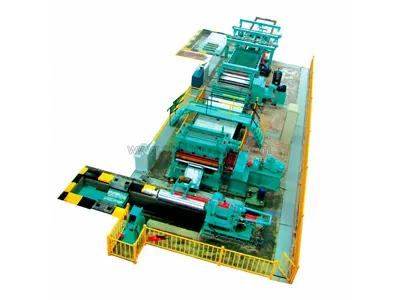

Cut to length machine line

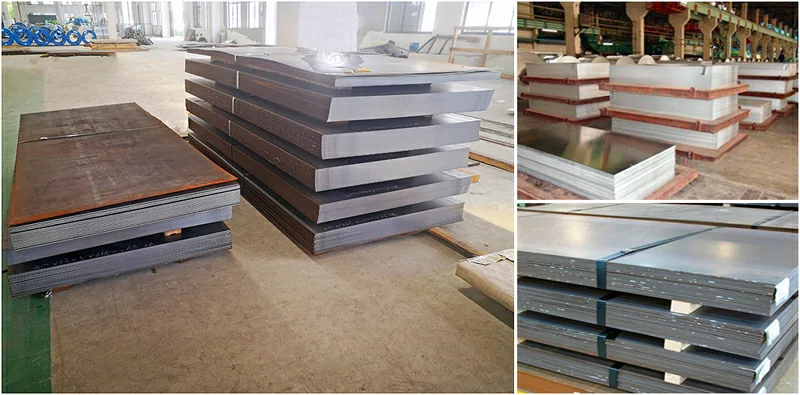

Final Products
