Cut To Length Line

CTL0.3-3.0 Metal Steel Cut To Length Steel

  • Coil Thickness: 0.3-3.0mm
  • Coil Width:500-2000mm
  • Production Speed:0-120m/min
  • Pipe Material: HR CR PPGI GI AL CU etc

Metal Cut To Length / Steel Cut To Length

Metal steel cut to length is applicable to coils of various specifications. Cut to length steel is used for cutting the required width and length metal sheet palte from roll coil throught the procedure of uncoiler, slattening, sizing, cutting and packaging. It has advantages such as proper layout, easy operation, highly automated and production efficiency.

This kind of metal cut to length consists of loading cut, uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, final leveler, servo length gauge, cut to length steel shear, belt conveyor, reversal discharge, stacker, discharging cart, servo transmission system, hydraulic system, etc.

CTL0.3-3.0 metal steel cut to length is applicable to coils of various specifications with the thickness of 0.3-3.0mm and width 500-2000mm. cut to length steel can produce HR CR PPGI GI AL CU.

Technical Parameters



Coil Material

SS / MS / GI / PPGI / HR / CR / Aluminum /Copper

Coil Thickness


Coil Width


Coil Weight


Coil I.D


Coil O.D


Final Sheet Length


Line Speed


Electrical Control System

PLC automatic control

Whole Review



4-Hi leveler

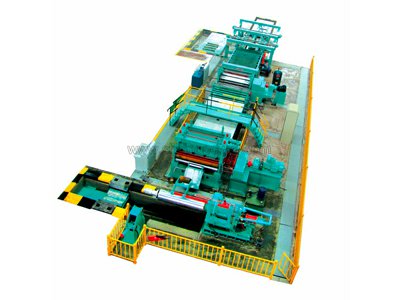

metal steel cut to length production line

Final Products
metal cut to length,steel cut to length,cut to length steel
