Cut To Length Line

CTL2-8 Roll To Sheet Cutter Machine

Coil Thickness:2-8mm
Coil Width:500-2000mm
Final Sheet Length:400-6000mm
Pipe Material: HR CR PPGI GI MS IRON etc
INQUIRY

Roll To Sheet Cutter / Roll To Sheet Machine

Roll to sheet cutter is applicable to coils of various specifications. Roll to sheet machine is used for cutting the required width and length metal sheet palte from roll coil throught the procedure of uncoiler, slattening, sizing, cutting and packaging. Roll to sheet Cutter has advantages such as proper layout, easy operation, highly automated and production efficiency.

This kind of roll to sheet machine consists of loading cut, uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, final leveler, servo length gauge, roll to sheet cutter shear, belt conveyor, reversal discharge, stacker, discharging cart, servo transmission system, hydraulic system, etc.

CTL2-8 roll to sheet machine is applicable to coils of various specifications with the thickness of 2-8 mm and width 500-2000mm. Roll to sheet cutter can produce HR CR PPGI GI AL CU.

Technical Parameters

Model	CTL2-8
Coil Material	HR / CR / SS / MS / GI / PPGI / BLACK STEEL / IRON
Coil Thickness	2-8mm
Coil Width	500-2000mm
Coil Weight	≤30T
Coil I.D	508mm,610mm,760mm
Coil O.D	≤2200mm
Final Sheet Length	400-6000mm
Line Speed	0-60m/min
Electrical Control System	PLC automatic control

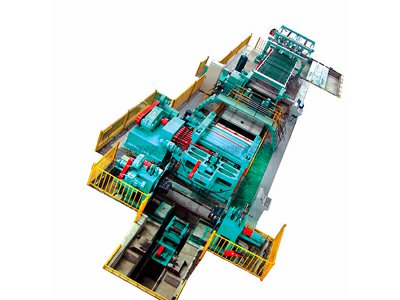

Whole Review

Decoiler

Pre-leveler

4-Hi leveler

Recoiler

Steel coil cut to length line

Final Products
roll to sheet cutter,roll to sheet machine,roll to sheet
