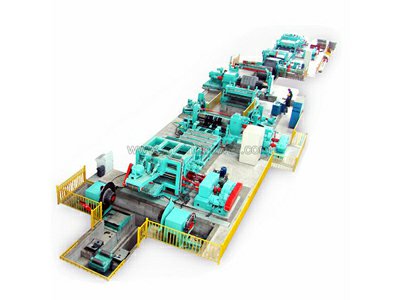

Slitting Machine

SP3-12 Stainless Steel Slitting Machine Manufacturers

Coil Thickness:3-12mm
Coil Width:500-2200mm
Production Speed:0-50m/min
Pipe Material: HR CR Iron black steel etc
INQUIRY

Steel Slitting machine / Steel Slitting Machine Manufactureres

Steel slitting machine is applicable to coils of various specifications. stainless steel slitting is used for cutting metal coil into required narrow width, for the use of pipe welding or other punch line, through the procedure of decoiler, pre-leveller, shear, slitting and recoiler. Steel slitting machine manufacturers has advantages such as proper layout, easy operation, highly automated and high production efficiency.

This kind of steel slitting machine is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless steel coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and stainless steel slitting widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc.

SP3-12 steel slitting machine is applicable to coils of various specifications with the thickness of 3-12mm and width 500-2200mm. Steel slitting machine manufacturers can produce HR CR PPGI GI AL CU.

Technical Parameters

Model	SP3-12
Coil Material	HR / CR / SS / MS / IRON
Coil Thickness	3-12mm
Coil Width	800-2200mm
Coil Weight	≤35T
Coil I.D	508mm,610mm,760mm
Coil O.D	≤2200mm
Strip Width	≥50mm
Number of Strip	5-25 slits
Slitting Accuracy	±0.05mm
Line Speed	0-50m/min
Electrical Control System	PLC automatic control

Whole Review

Decoiler

Pre-leveler

Slitter

Recoiler

Steel coil slitting line

Final Products
