Slitting Machine

SP1-6 Sheet Metal Slitter Machine

Coil Thickness:1-6mm
Coil Width:500-2000mm
Productoin Speed:0-80m/min
Pipe Material: HR CR PPGI GI AL CU etc
INQUIRY

Sheet Metal Slitter / Metal Slitter

Sheet metal slitter is applicable to coils of various specifications. Metal Slitter is used for cutting metal coil into required narrow width, for the use of pipe welding or other punch line, through the procedure of decoiler, pre-leveller, shear, slitting and recoiler. Sheet metal slitter machine has advantages such as proper layout, easy operation, highly automated and high production efficiency.

This kind of sheet metal slitter is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless steel coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and metal slitter widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc.

SP1-6 sheet metal slitter machine is applicable to coils of various specifications with the thickness of 1-6mm and width 800-2000mm. sheet metal slitter can produce HR CR PPGI GI AL CU.

Technical Parameters

Model	SP1-6
Coil Material	SS / MS / GI / PPGI / HR / CR / Aluminum /Copper
Coil Thickness	1-6mm
Coil Width	800-2000mm
Coil Weight	≤30T
Coil I.D	508mm,610mm,760mm
Coil O.D	≤2100mm
Strip Width	≥30mm
Number of Strip	5-30 slits
Slitting Accuracy	±0.05mm
Line Speed	0-80m/min
Electrical Control System	PLC automatic control

Whole Review

Decoiler

Pre-leveler

Slitter

Recoiler

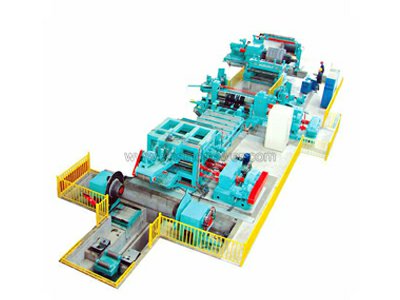

Steel coil slitting line

Final Products
