Cut To Length Line

CTL5-25 Sheet Metal Cutting Machine Price Shears

Coil Thickness:5-25mm
Coil Width:500-2200mm
Final Sheet Length:400-12000mm
Pipe Material: HR CR PPGI GI etc
INQUIRY

Sheet Metal Cutting Machine / Metal Cutting Machine Price

Sheet metal cutting machine is applicable to coils of various specifications. Sheet metal cutting shears is used for cutting the required width and length metal sheet palte from roll coil throught the procedure of uncoiler, slattening, sizing, cutting and packaging. Metal cutting machine price has advantages such as proper layout, easy operation, highly automated and production efficiency.

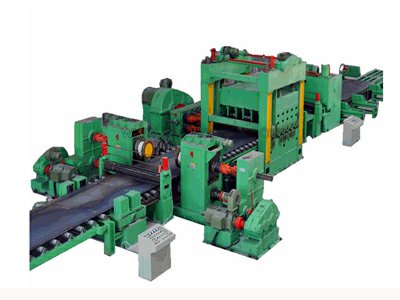

This kind of sheet metal cutting machine consists of loading cut, uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, final leveler, servo length gauge, sheet metal cutting shears, belt conveyor, reversal discharge, stacker, discharging cart, servo transmission system, hydraulic system, etc.

CTL5-25 metal cutting machine price is applicable to coils of various specifications with the thickness of 5-25mm and width 500-2200mm. sheet metal cutting machine can produce hot roll steel, black steel, iron and mild steel etc.

Technical Parameters

Model	CTL5-25
Coil Material	Hot roll, cold roll, mild steel, black steel, iron etc
Coil Thickness	5-25mm
Coil Width	800-2500mm
Coil Weight	≤35T
Coil I.D	508mm,610mm,760mm
Coil O.D	≤2500mm
Final Sheet Length	400-12000mm
Line Speed	0-30m/min
Electrical Control System	PLC automatic control

Whole Review

Decoiler

Pre-leveler

4-Hi leveler

Recoiler

Steel coil slitting line

Final Products
Sheet metal cutting machine,metal cutting machine price,sheet metal cutting shears
