Steel Pipe Making Machine

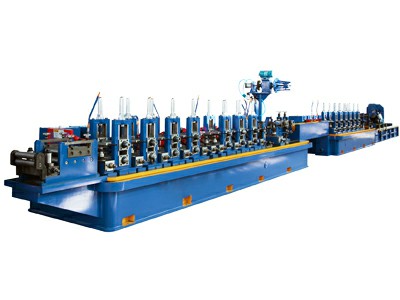

SP60 Steel Tube Mill Erw Tube Mill

  • Pipe Size:19-76mm
  • Pipe Thickness:0.6-3.0mm
  • Production Speed:20-100mm
  • Pipe Material: Carbon Steel, Galvanized Steel, Mild Steel, Iron etc.
  • INQUIRY

ERW Tube Mill / Steel Tube Mill

SP60 ERW tube mill is for 19-76 mm diameters round pipe by 0.6-3.0 mm thickness ,15x15-60x60 mm square tube, 15x20-40x80 mm rectangular tube,the thickness is 0.6-2.5 mm of steel tube mill.

SP60 erw tube mill is a series of steel tube mill that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The erw tube mill be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipes produced by steel tube mill be cut to length and bundled.

Technical Parameters

Model

SP50

SP60 SP76

Round Tube

Diameter

19-76 mm

19-76 mm 25-90 mm

Thickness

0.6-2.5 mm

0.6-3.0 mm 1.0-4.0 mm

Square & Rectangle
Tube

Max. Square Size

15x15-60x60 mm

15x15-60x60 mm 20x20-70x70 mm

Max. Rectangle Size

15x20-40x80 mm

15x20-40x80 mm 20x30-60x80 mm

Thickness

0.6-2.0 mm

0.6-2.5mm 1.0-3.0 mm

Speed

20-120 m/min

20-100m/min 20-80m/min

Major Motor  Power

132KW

185 KW 110x2 KW

High Frequency  Power

200 KW

250 KW 300 KW


ERW Tube Mill Process


Final Pipes


Whole Review








Standard Model List
of erw tube mill,steel tube mill,tube mill

Model
Round Pipe
Square Tube & Rectangle Tube
Speed
m/min
Diameter
/mm
Thickness
/mm
Square Tube
/mm
Rectangle Tube
/mm
Thickness
/mm
SP16 8 - 25 0.2 - 1.0 10x10 - 20x20 10x12 - 15x25 0.2 - 0.8 20 - 120
SP25 8 - 32 0.3 - 1.3 10x10 - 25x25 10x12 - 20x30 0.3 - 1.0 20 - 120
SP28 8 - 42 0.3 - 1.8 10x10 - 30x30 10x12 - 20x40 0.3 - 1.3 20 - 120
SP32  16 - 50 0.6 - 2.0 12x12 - 40x40 10x14 - 30x50 0.6 - 1.6 20 - 120
SP45 19 - 63 0.6 - 2.5 15x15 - 50x50 15x20- 40x60 0.6 - 2.0 20 - 120
SP50 19 - 76 0.6 - 2.5 15x15 - 60x60 15x20 - 40x80 0.6 - 2.0 20 - 100
SP60 19 - 76 0.6 - 3.0 15x15 - 60x60 15x20 - 40x80 0.6 - 2.5 20 - 100
SP76 25 - 90 1.0 - 4.0 20x20 - 70x70 20x30 - 60x80 1.0 - 3.0 20 - 70
SP90 32 - 114 1.5 - 4.5 25x25 - 90x90 20x30 -80x120 1.5 - 3.5 20 - 60
SP115 38 - 127 2.0 - 5.0 30x30 - 100x100 20x40 - 60x120 2.0 - 4.0 20 - 60
SP165 60 - 165 2.0 - 6.0 45x45 - 130x130 30x60 - 100x150 2.0 - 5.0 15 - 50
SP219 90 - 219 3.0 - 8.0 70x70 - 170x170 100x40 - 200x140 3.0 - 6.0 15 - 50
SP273 127 - 273 4.0 - 10.0 100x100 - 200x200 100x150 - 150x250 4.0 - 8.0 15 - 40
SP355 165 - 355 4.0 - 12.0 130x130 - 270x270 100x160 - 200x340 4.0 - 10.0 15 - 30
