Steel Pipe Making Machine

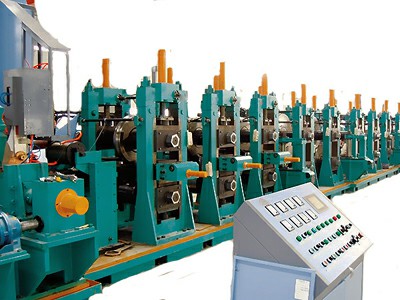

SP273 Pipe Milling Profiling Machine Pipe Forming Machine

  • Pipe Size:100-273mm
  • Pipe Thickness:3.0-10.0mm
  • Production Speed:15-40m/min
  • Pipe Material: Carbon Steel, Galvanized Steel, Mild Steel, Iron etc.
  • INQUIRY

Pipe Forming Machine/ Pipe Profiling Machine

SP273 pipe forming machine is for 127-273 mm diameters round pipe by 4.0-10.0 mm thickness, 100x100-200x200 mm square tube, 100x150-150x250 mm rectangular tube,the thickness is 4.0-8.0 mm of pipe milling machine.

SP273 pipe profiling machine is a series of pipe milling machine that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The pipe forming machine be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipes produced by  pipe profiling machine be cut to length and bundled.

Technical Parameters

Model

SP165 SP217 SP273

Round Tube

Diameter

60-165 mm 90-219 mm 127-273 mm

Thickness

2.0-6.0 mm 3.0-8.0 mm 4.0-10.0 mm

Square & Rectangle
Tube

Max. Square Size

45x45-130x130 mm 70x70-170x170 mm 100x100-200x200 mm

Max. Rectangle Size

30x60-100x150 mm 100x40-200x140 mm 100x150-150x250 mm

Thickness

2.0-5.0 mm 3.0-6.0 mm 4.0-8.0 mm

Speed

15-50 m/min 15-50 m/min 15-40 m/min

Major Motor  Power

200x2 KW 250x2 KW 250+185x2 KW

High Frequency  Power

500 KW 600 KW 800 KW

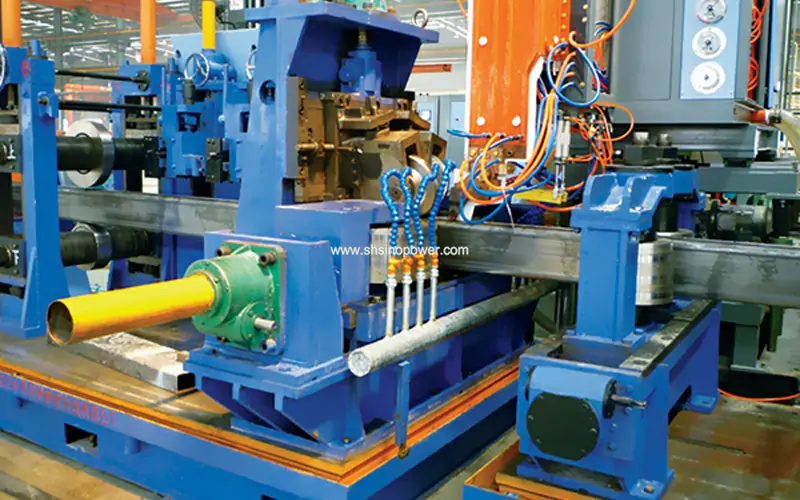

Pipe Milling Machine Process


Final Pipes

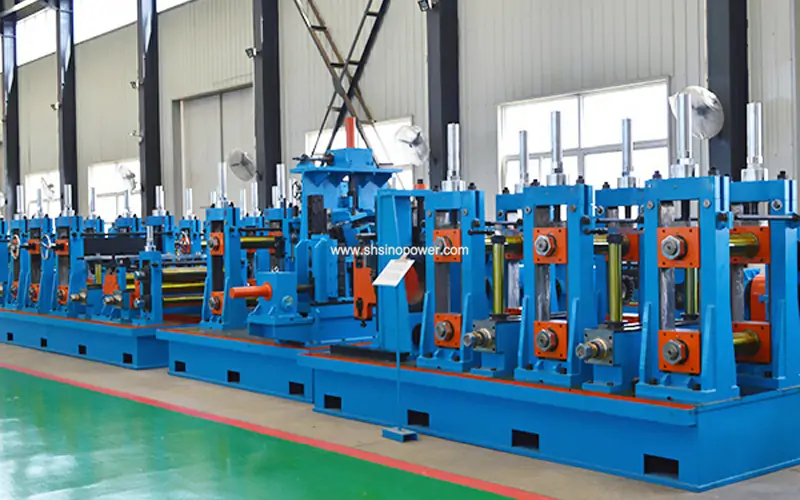

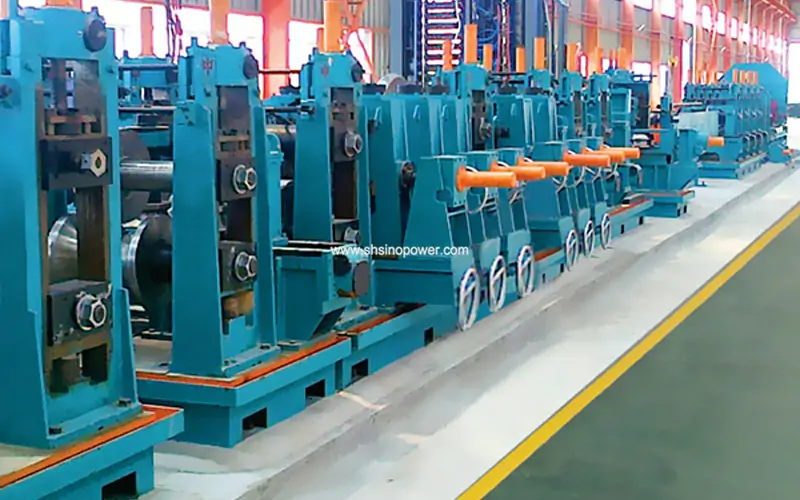

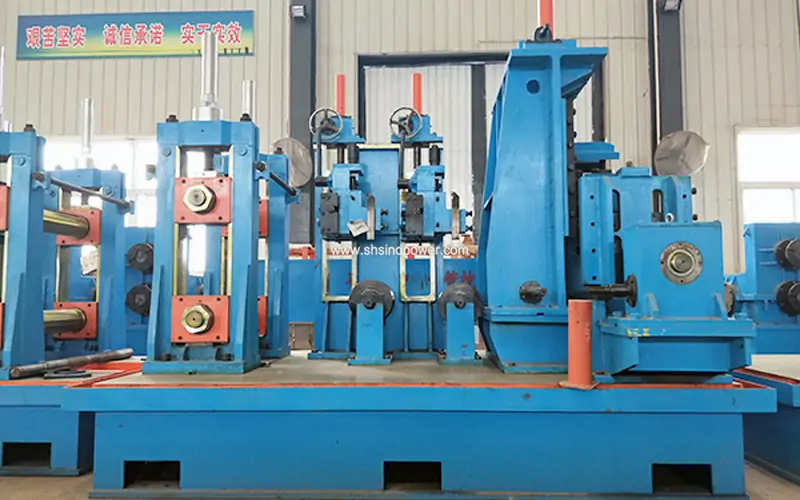

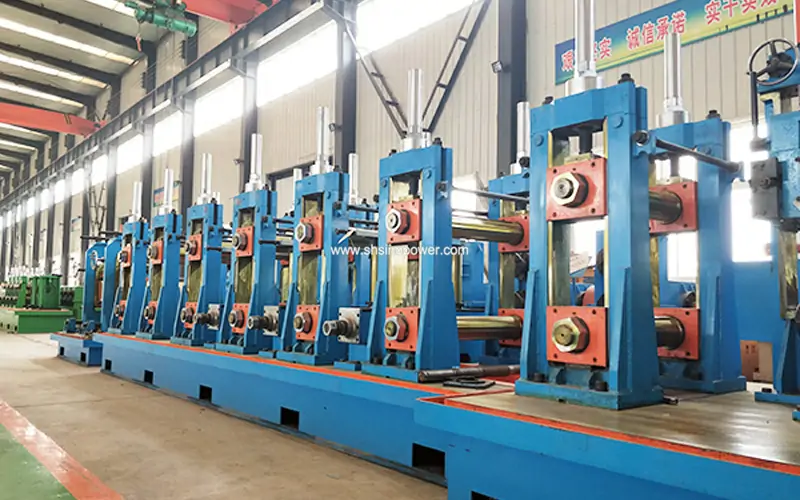

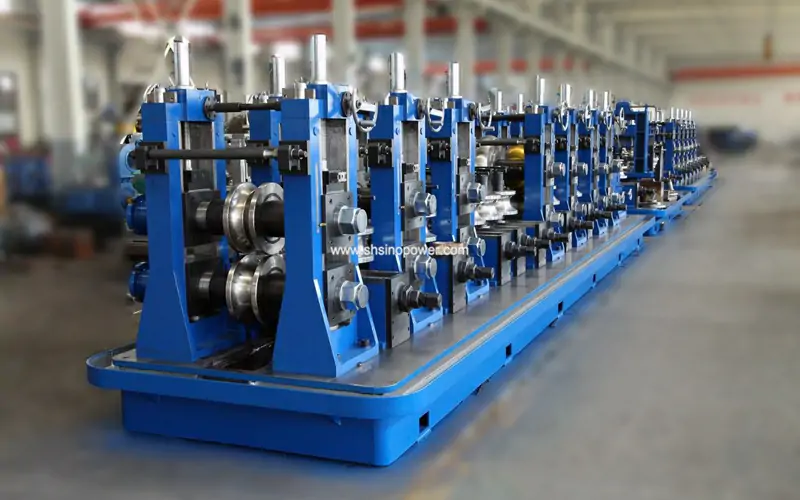

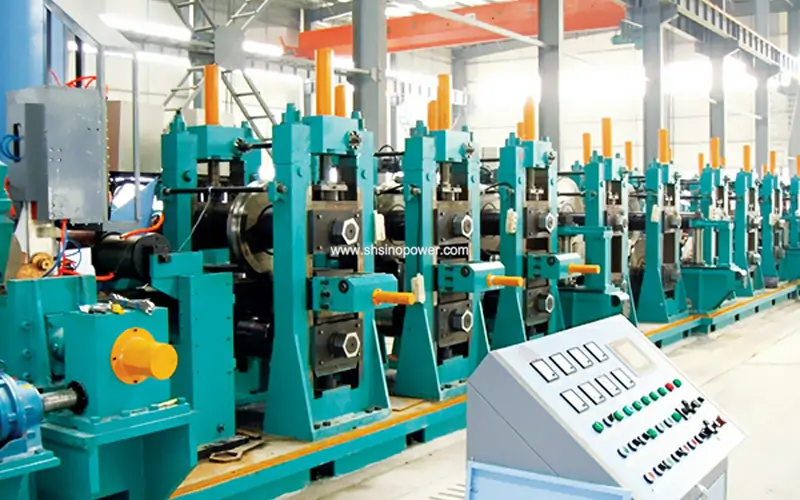

Whole Review








Standard Model List
of pipe forming machine,pipe milling machine,pipe profiling machine

Model
Round Pipe
Square Tube & Rectangle Tube
Speed
m/min
Diameter
/mm
Thickness
/mm
Square Tube
/mm
Rectangle Tube
/mm
Thickness
/mm
SP16 8 - 25 0.2 - 1.0 10x10 - 20x20 10x12 - 15x25 0.2 - 0.8 20 - 120
SP25 8 - 32 0.3 - 1.3 10x10 - 25x25 10x12 - 20x30 0.3 - 1.0 20 - 120
SP28 8 - 42 0.3 - 1.8 10x10 - 30x30 10x12 - 20x40 0.3 - 1.3 20 - 120
SP32  16 - 50 0.6 - 2.0 12x12 - 40x40 10x14 - 30x50 0.6 - 1.6 20 - 120
SP45 19 - 63 0.6 - 2.5 15x15 - 50x50 15x20- 40x60 0.6 - 2.0 20 - 120
SP50 19 - 76 0.6 - 2.5 15x15 - 60x60 15x20 - 40x80 0.6 - 2.0 20 - 100
SP60 19 - 76 0.6 - 3.0 15x15 - 60x60 15x20 - 40x80 0.6 - 2.5 20 - 100
SP76 25 - 90 1.0 - 4.0 20x20 - 70x70 20x30 - 60x80 1.0 - 3.0 20 - 80
SP90 32 - 114 1.5 - 4.5 25x25 - 90x90 20x30 -80x120 1.5 - 3.5 20 - 60
SP115 38 - 127 2.0 - 5.0 30x30 - 100x100 20x40 - 60x120 2.0 - 4.0 20 - 60
SP165 60 - 165 2.0 - 6.0 45x45 - 130x130 30x60 - 100x150 2.0 - 5.0 15 - 50
SP219 90 - 219 3.0 - 8.0 70x70 - 170x170 100x40 - 200x140 3.0 - 6.0 15 - 50
SP273 127 - 273 4.0 - 10.0 100x100 - 200x200 100x150 - 150x250 4.0 - 8.0 15 - 40
SP355 165 - 355 4.0 - 12.0 130x130 - 270x270 100x160 - 200x340 4.0 - 10.0 15 - 30
