Metal Coil Slitting Machine

  • SP(0.4-4.0) steel coil slitting machine
SP(0.4-4.0) steel coil slitting machine

SP(0.4-4.0) steel coil slitting machine

  • Coil thickness: 0.4-4.0mm
  • Coil width:400-2000mm
  • Productin speed:20-100m/min
  • Pipe material: HR, CR, PPGI, GI,AL,CU,etc
  • Product description: SP(0.4-4.0) steel coil slitting machine is applicable to coils of various specifications with the thickness of 0.4-4.0mm and width 500-2200mm. steel slitting machine can produce HR, CR, PPGI, GI,AL,CU
  • INQUIRY

SP(0.4-4.0) Steel coil slitting machine is applicable to coils of various specifications. It is used for steel slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, steel slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.
This steel slitting machine is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and slitting machine widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc. This steel slitter consists of loading cart, uncoiler, slitter, scrap winder, cropping shear, tension controller and coil recoiler, etc. Loop bridge, pinch and deviation corrector are equipped between each machine. This steel slitting machine is a integration of mechanical, electrical, hydraulic and pneumatic technology.

1. Technical Parameters of steel slitting machine

Model Thickness Coil Width Coil Weight Coil O.D Coil O.D Strip
Width
Number
of Strip
Slitting Accuracy Line Speed Coil Material
mm mm tons mm mm mm pcs mm m/min
SP(0.2-2) 0.3-2.0 400-1600 ≤20 508 ≤2000 ≥30 8~20 ±0.15 0~150 δs≤230N/2,
Cold-rolled Coil,
Hot-rolled Coil,
Stainless Coil,
Galvanized Coil,
Aluminum Coil,
Copper Coil,
etc
SP(0.3-3) 0.3-3.0 400-1600 ≤20 508,610 ≤2000 ≥30 8~20 ±0.15 0~120
SP(0.4-4) 0.4-4 500-2200 ≤25 508,610,760 ≤2200 ≥30 8~20 ±0.25 0~100
SP(1-6) 1-6 500-2200 ≤25 508,610,760 ≤2200 ≥50 5~15 ±0.25 0-80
SP(1-8) 2-8 500-2200 ≤25 508,610,760 ≤2200 ≥50 5~12 ±0.25 0-60
SP(2-10) 2-10 500-2200 ≤35 508,610,760 ≤2200 ≥50 3~10 ±0.5 0-60
SP(2-12) 2-12 500-2200 ≤35 610,760,820 ≤2200 ≥80 3~10 ±0.5 0-40
SP(3-14) 3-14 500-2200 ≤35 610,760,820 ≤2200 ≥80 2~8 ±0.1 0-40
SP(3-16) 3-16 500-2300 ≤35 610,760,820 ≤2500 ≥100 2~8 ±0.2 0-40
SP(5-20) 5-20 500-2300 ≤35 610,760,820 ≤2500 ≥100 2~8 ±0.2 0-20










2. Process Flow of steel coil slitting machine

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control

slitting machine, slitter machine

steel slitting machine line

3. Photos of steel slitting machine

Main Machine 1: Uncoileruncoiling uncoiler

Main Machine 2:  Leveling machineleveling leveler

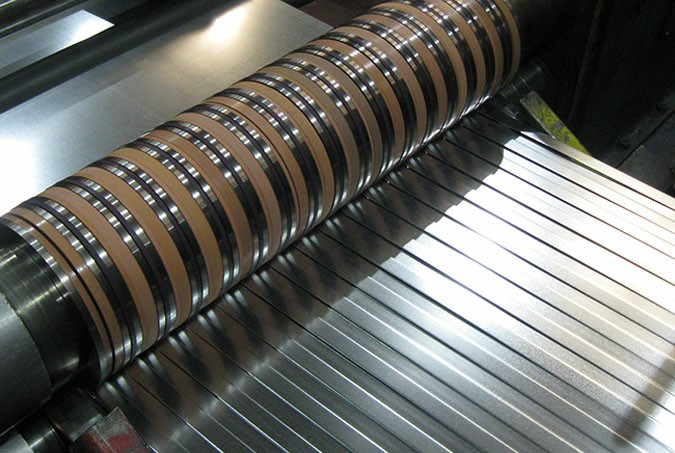

Main Machine 3:  steel coil Slitting machineslitting slitterslitting blade

Main Machine 4:  Rewinding machinerecoiler, rewinder


Workshop of whole steel slitting machine

whole metal coil slitting machine line

slitting line,slitting line machine,metal slitting line,

4. Final product by steel coil slitting machine

steel coil slitting final product
