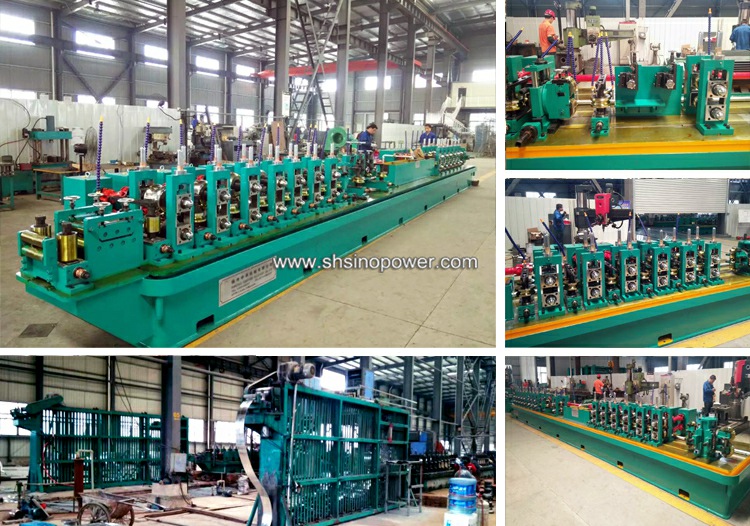

  • SP32 welded pipe making machine china
SP32 welded pipe making machine china

SP32 welded pipe making machine china

  • Pipe size13-50mm
  • Pipe thickness:0.5-2.0mm
  • Productin speed:20-90m/min
  • Pipe material: carbon steel, Stainless steel
  • Product description: SP32 (diameters 13-50mm) welded pipe making machine china is for 13-50 mm diameters round tube,40x40mm square tube,30x50mm rectangular tube,thickness is 0.6-2.0mm based on welded pipe making machine.
  • INQUIRY

SP32(13-50mm) welded pipe making machine china is a series of pipe making that builds longitudinal weld seam pipe with steel strips of certain width. It starts by uncoil and flatten the slit steel coils into steel strips. The flattened steel strips will be inserted into the forming machine and the rollers in the machine will bend the strip to a round pipe shape. The round pipe then be sent into the weld box where the pipe is welded by a high frequency or solid state welder. The welded pipe making machine, be formed to expected shape (round/ square/ rectangle etc) or size in a sizing machine. Finally the pipe will be cut to length and bundled.

1. Parameters of pipe making machine china

Model Unit SP28 SP32 SP32L SP50
Diameter of Welded Tubes mm 10-40 13-50 16-63 19-63
Size of Square Tube (Max.) mm 30x30 40x40 50x50 50x50
Size of Rectangle Tube (Max.) mm 20x40 30x50 40x60 40x60
Wall Thickness of Round Tube mm 0.5-1.5 0.6-2.0 0.6-2.0 0.8-2.5
Wall Thickness of Square  Tube mm 0.5-1.2 0.6-1.5 0.6-1.5 0.8-2.0
Wall Thickness of Rectangle Tube mm 0.5-1.2 0.6-1.5 0.6-1.5 0.8-2.0
Speed of Tube Welding m/min 20-90 20-90 20-90 20-90
Power of Major Motor KW 75 110 110 132
High Frequency Power KW 150 150 150 150

2. Process flow

pipe making machine, pipe welding machine

Step 1: Uncoiler

Function: support rolled plate and strip tension for pipe making, by the frame, main shaft, increases of drum, brake.

There are 3 types: pneumatic, hydraulic and manual.

decoiler uncoiler unwinding of erw pipe mill

Step 2: Shear & Butt-welding

Function: Shear the end of each strip coil, then welding them together, so that welded pipe making can be continue production.

2 Types: Automatic & Manual

head shear and welder for pipe making machine

Step 3: Strip Accumulator

Function: storage strip to keep continue production.

2 Types: Horizontal / Vertical

Advantage: Horizontal type can be larger storage. Vertical type is much cheap and small space occupied.

vertical accumulator horizontal accumulator

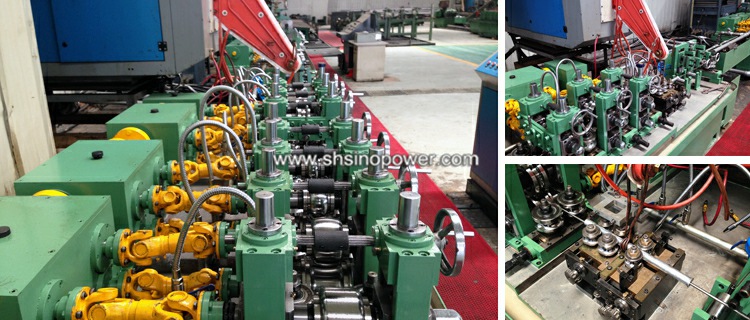

Step 4: Forming Section

Function: forming the tube from strip

Advantage:

>Advanced forming technical
>One-stage molding platform
>Reliable quality gear box

>Siemens Beide motor

forming section of steel pipe mill

Step 5: High Frequency Welding

Function: Welding the pipe , different thickness & diameter, the power of the pipe making machine china welder

Our advantage: We choose the China best welder: Sanyi brand.

high frequency welding station for steel pipe machine

Step 6: Sizing Section

Function: sizing the tube to precise size

Advantage:

>Advanced sizing technical
>One-stage molding platform
>Reliable quality gear box and Siemens Beide motor

>High precision, low error of the pipe size

sizing parts for erw tube mill

Step 7: Flying saw / Cold Saw

Function: cutting the tube mill line tube to right length.

Fly saw: easy to operation, low investment.

Cold saw: no noise, no burr cutting precision and cross section.

fly saw cold saw and cutting saw

Step 8: Run Out Table.

Function: run out the pipe, packing the pipe for welded pipe making machine china

Type: Automatic or manual

run out table for tube making machine package

3. Applications of pipe making

1. Oil & Gas Pipes

7. Wire and Cable Protection Pipe

2. Heating Pipe

8. Structural Support Steel Pipe

3. Low-pressure Process Pipeline

9. Industrial Steel Pipes

4. Low Pressure Fire Fighting Pipeline

10. Decoration Pipe

5. Sewage Pipes

11. Water Pipe

6. Steel Scaffolding Pipe

12. Building pipe

4. Photos

tube line,black tube line,tube mill line,

SP16 Black tube mill line

5. Final product of welded pipe making machine

Material:  carbon steel, galvanized steel pipe, mild steel, iron, black steel, ms steel, etc.

welding pipe welded tube

6. Whole series of pipe making

steel square pipe making machine,erw pipe making machine

About are standard series machine, we also accept customized according to the customer requirement.
