Top Sale Machine

  • Metal Steel Cut to Length Machine Line for sale
Metal Steel Cut to Length Machine Line for sale

Metal Steel Cut to Length Machine Line for sale

  • Coil thickness: 0.2-25mm
  • Coil width:400-2500mm
  • Productin speed:20-120m/min
  • Pipe material: HR, CR, PPGI, GI,AL,CU,etc
  • Product description: Metal Steel Cut to Length Machine Line for sale is applicable to coils of various, specifications with the thickness of 0.2-25mm and width 500-2500mm.It can produce HR, CR, PPGI, GI,AL,CU.
  • INQUIRY

Steel Coil Cut to Length Machine / Cut to Length Line Manufacturers

SINOPOWER cut to length machine is applicable to coils of various specifications. It is used for cutting the required width and length metal sheet plate from roll coil through the procedure of uncoiling, flattening,sizing, cutting and packaging.It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

This cut to length line consists of loading cut, single pivot uncoiler, pre-leveler, hydraulic loop bridge, deviation corrector, fine leveler, servo length gauge, cut to length machine shear, belt conveyor, reversal discharger, stacker, discharging cart, servo transmission system, hydraulic system, etc.

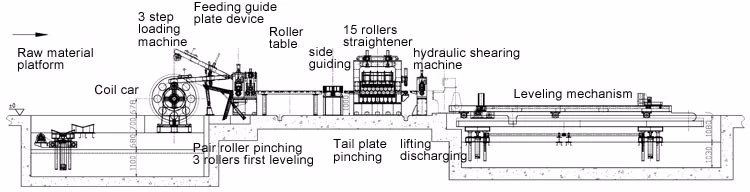

cut to length machine layout

1. Technical Parameters

(Below are our standard models, we also accept customized. )

Model
SP0.2-2.0x1250
SP0.3-3.0x1600
SP1-6×1600
SP2-8x2000
SP3-12×2000
SP4-16x2200
Coil Material
HR,CR,PPGI,GI, steel coil, copper coil, aluminum coil.
Coil Thickness
0.2-2.0mm
0.3-3.0mm
1-6mm
2-8mm
3-12mm
4-16mm
Coil Width
600-1600mm
800-2000mm
800-2200mm
Coil Weight
≤20 tons / customized
≤30 tons / customized
≤35tons / customized
Coil Inner Diameter
508mm,610mm,760mm
610mm,760mm
φ610mm,φ760mm
Coil Outer Diameter
≤2000mm
≤φ2200mm
≤φ2200mm


2: Whole Review

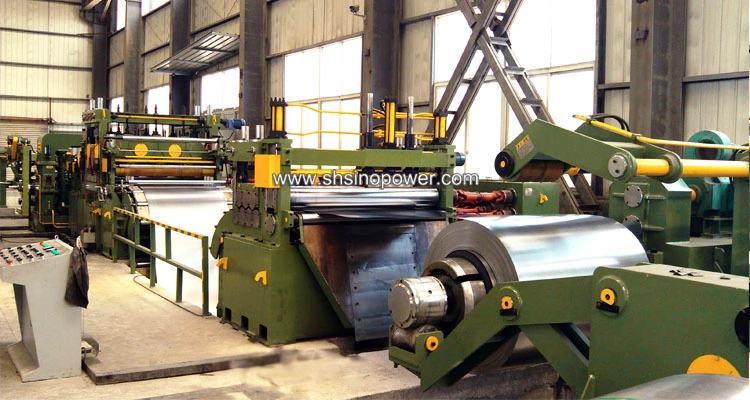

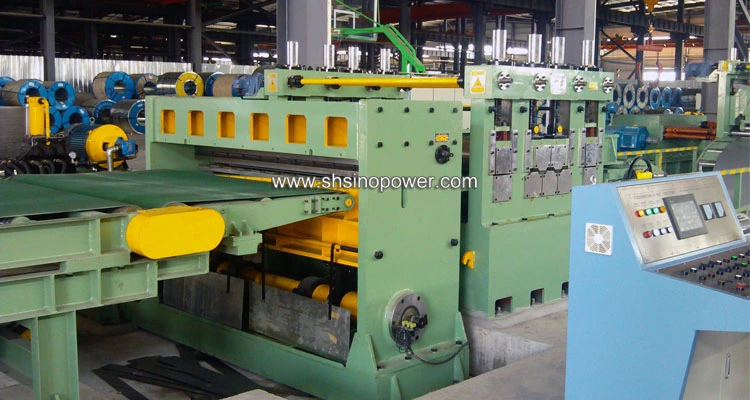

Whole Review

cut to length line machine whole review

cut to length line machine 2

Step 1: Uncoiler Section

Steel coil slitting machine decoiler

Step 2: Pre-Leveling Section

steel coil slitting machine pre leveling

Step 3: 4-Hi Leveling Section

cut to length line machine 8

Step 4: Cutting Section

steel cut to length line machine

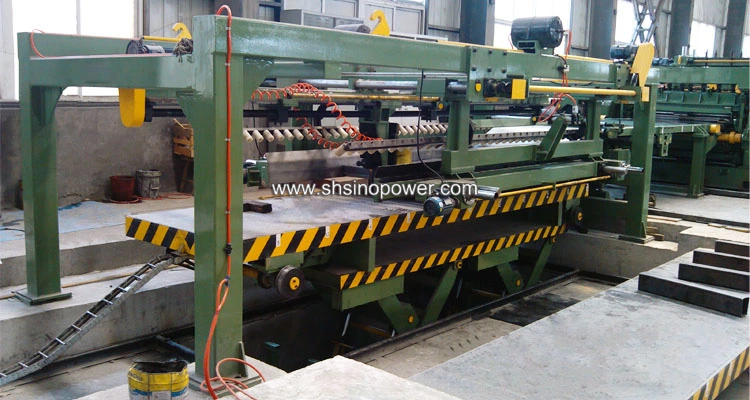

Step 5:  Storage Section

cut to length line machine storage

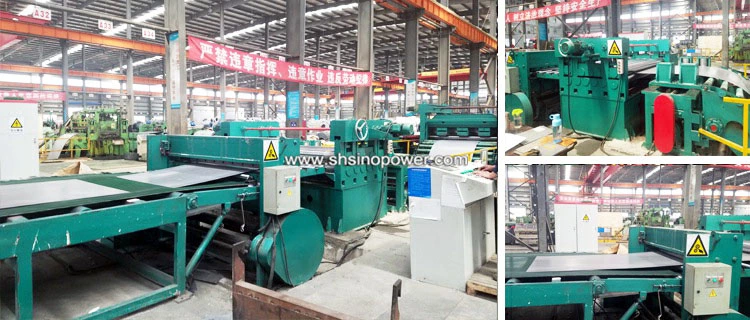

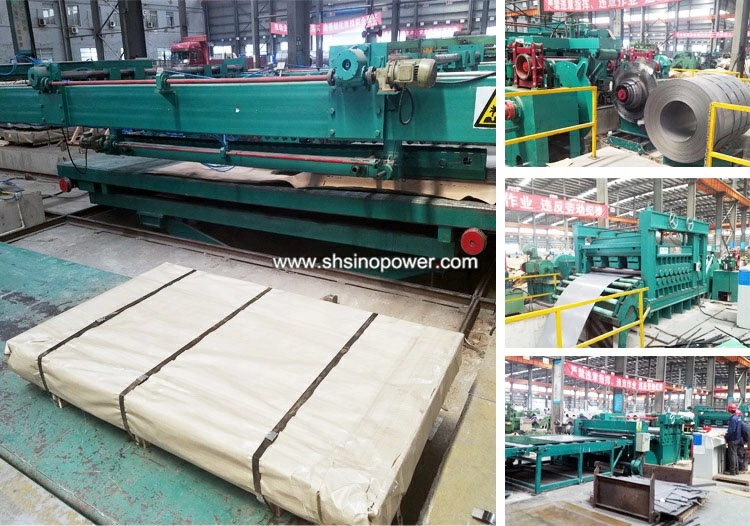

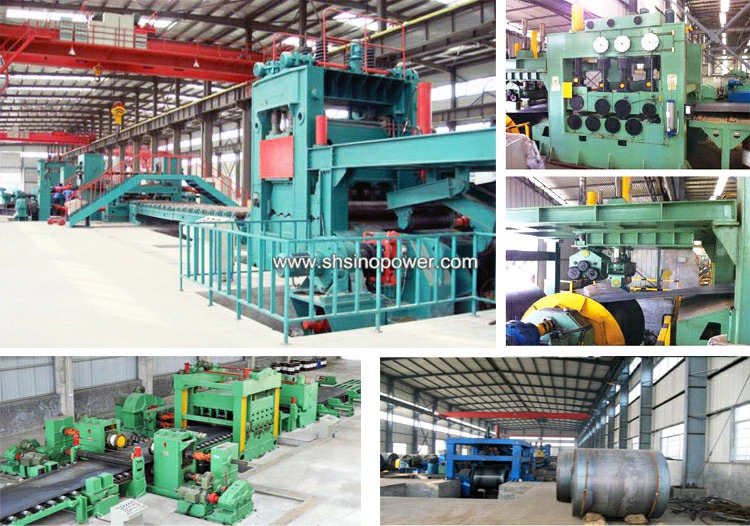

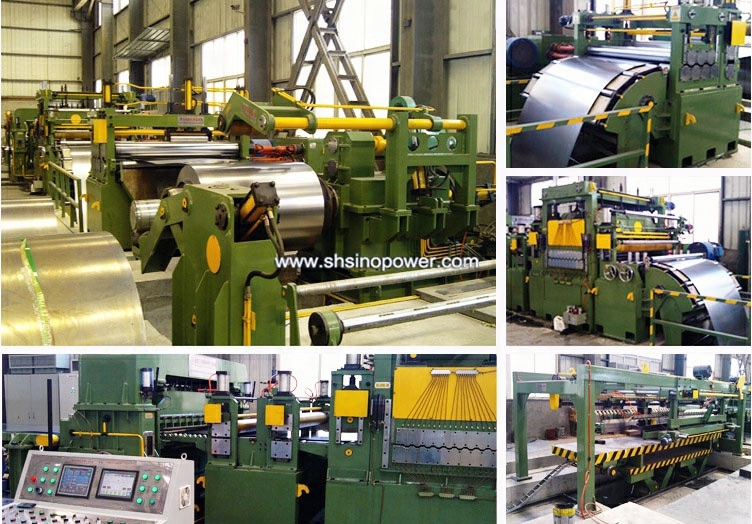

Machine At Site

cut to length line machinecut to length line machine 2

metal cut to length line machine

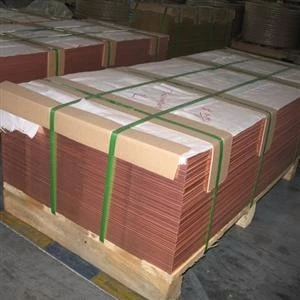

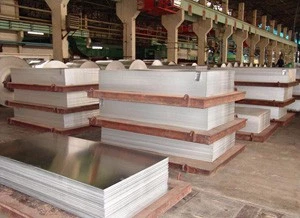

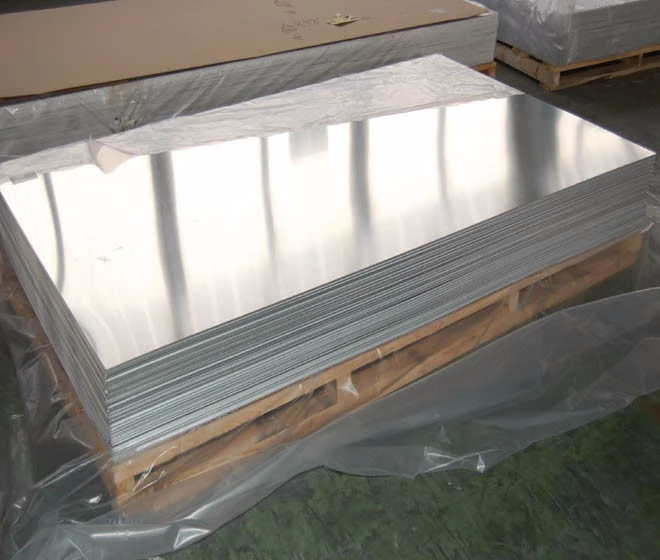

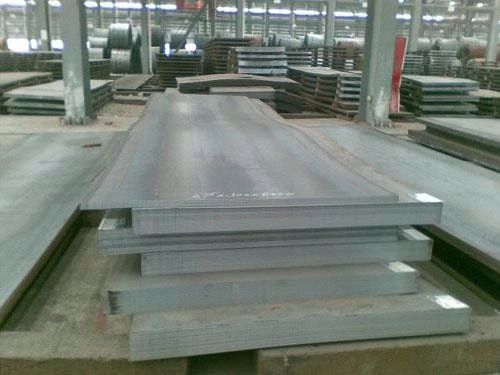

3. Final Product by Steel Coil Slitting Machine

cut to length line machine 1cut to length line machinecut to length line machinecut to length line machine

Keywords: cut to length line,cut to length machine,steel cut to length line,steel cut to length machine.
